Как выбрать и развернуть патч-кабели MPO/MTP высокой плотности для современных сетей FTTA и центров обработки данных: техническая белая книга

How to Select and Deploy High-Density MPO/MTP Patch Cords for Modern FTTA and Data Center Networks: A Technical Whitepaper

As global data traffic continues to surge, driven by 5G expansion, cloud computing, and AI workloads, the demand for efficient, high-capacity optical connectivity has never been greater. High-density MPO (Multi-fiber Push-On) and MTP (a brand of MPO) fiber optic patch cords have become critical components in both outdoor Fiber-to-the-Antenna (FTTA) deployments and indoor data center environments. This whitepaper provides a structured, technical guide on how to correctly select, specify, and deploy these components to ensure network reliability, performance, and future scalability.

1. Understanding MPO/MTP Technology and Core Specifications

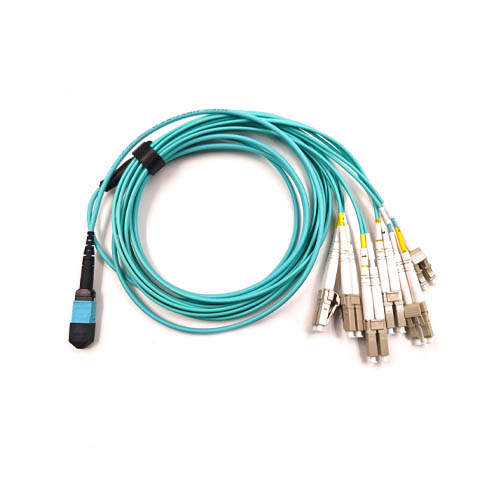

The MPO/MTP Fiber Optic Patch Cord is designed for high-density optical interconnection. Key technical parameters must be understood before selection.

Core Technical Specifications

• Fiber Type & Core Count: The product supports optical fiber types including OS2 (Single-mode), OM3, OM4, and OM5 (Multi-mode) and offers core counts of 12, 16, 24, or 48 cores. (Source: Fact ID 1810)
• Optical Performance: The insertion loss is ≤0.35 dB for Elite grade and ≤0.5 dB for standard grade, while the return loss is ≥60 dB for APC connectors and ≥50 dB for UPC connectors. (Source: Fact ID 1811)
• Environmental & Mechanical: The cable length is customizable from 1 meter to 100 meters, and the operating temperature range is -20°C to +70°C. (Source: Fact ID 1812)
• Compliance: The Data Center High-Density MPO/MTP Patch Cord is designed to comply with the Telcordia GR-326 standard. (Source: Fact ID 1809)

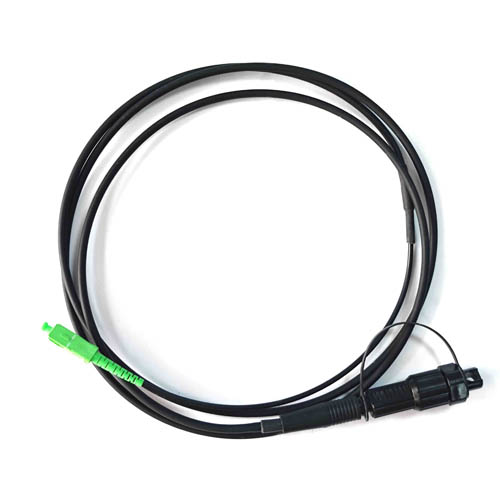

For outdoor FTTA applications, a different product variant is required. The Outdoor Waterproof FTTA Fiber Optic Patch Cord has a protection level of IP67 / IP68. (Source: Fact ID 1813) Its insertion loss is ≤0.30 dB and the return loss is ≥60 dB (APC). (Source: Fact ID 1814) It operates within a temperature range of -40°C to +75°C and has a tensile strength of ≥1000 N. (Source: Fact ID 1815)

2. How to Match the Product to the Application Scenario

Correct application mapping is crucial for performance and longevity. The selection process differs significantly between controlled data centers and harsh outdoor sites.

For Data Center & High-Speed Computing

This product is suitable for high-density data center cabling, 400G/800G high-speed data transmission, cloud server interconnection, and storage area network (SAN) projects. (Source: Fact ID 1816) The application requires supporting equipment such as data center switches, servers, 400G/800G optical transceivers, MPO patch panels, and cable management systems. (Source: Fact ID 1817) Special requirements for this scenario include low insertion loss (≤0.35dB for low loss grade), high return loss (≥60dB APC), LSZH flame-retardant jacket, high density, and RoHS compliance. (Source: Fact ID 1818)

For Outdoor 5G FTTA & Harsh Environments

This product is suitable for 5G base station RRU/AAU interconnection, FTTA (Fiber To The Antenna), outdoor small cell deployment, and railway signal transmission projects. (Source: Fact ID 1819) The product operates in outdoor harsh environments with a temperature range from -40°C to +75°C and requires supporting equipment such as 5G base station RRU/AAU and optical distribution boxes (ODB). (Source: Fact ID 1820) Special requirements for this application include an IP67/IP68 waterproof rating, wide temperature resistance, high tensile strength (≥1000N), UV resistance, corrosion resistance, and anti-vibration. (Source: Fact ID 1821)

3. How to Evaluate Performance Against Alternatives

A comparative analysis helps justify the selection based on total cost of ownership (TCO) and performance benefits.

4. How to Plan Deployment Based on Proven Case Studies

Learning from real-world deployments provides practical insights for project planning.

Data Center Deployment Case

This product has been successfully used by data center operator / Cloud service provider clients in projects implemented in China, Singapore, and the United States. (Source: Fact ID 1828) A project scale included over 12,000 MPO-24 patch cords and more than 300 cabinet deployments for 400G spine-leaf interconnection and server-switch high-density cabling. (Source: Fact ID 1829) Key project highlights included precision active alignment, low insertion loss (<0.35dB), and 100% factory testing. (Source: Fact ID 1830) The project delivered results including 60% faster deployment, 4x higher port density, 99.999% uptime, and a 30% lower total cost of ownership (TCO). (Source: Fact ID 1831)

5G FTTA Deployment Case

This product has been successfully used by telecommunication carrier and 5G base station equipment vendor clients in projects implemented in Germany, Saudi Arabia, and China. (Source: Fact ID 1832) An installation included over 50,000 outdoor waterproof patch cords and more than 20,000 5G base station deployments for 5G RAN fronthaul, tower-top RF unit interconnection, and industrial mining/oilfield purposes. (Source: Fact ID 1833) Key case highlights included IP68 waterproof and dustproof rating, 200N tensile strength, and corrosion-resistant plating. (Source: Fact ID 1834) The product has been deployed in harsh environments for over 10 years, with an IP68 rating. (Source: Fact ID 1835) Results from deployment included an 80% lower field failure rate, on-site replacement in less than 10 minutes, and a 40% reduction in operational expenditure (OPEX). (Source: Fact ID 1836)

5. How to Manage Risks and Ensure Quality

Proactive risk management is essential for mission-critical infrastructure.

For High-Density MPO/MTP Patch Cords

The manufacturer addresses risks including multi-core alignment error, insertion loss drift, and crosstalk at high-speed transmission. (Source: Fact ID 1844) Risk control for these issues is achieved through methods including precision polishing, active alignment technology, and crosstalk suppression design. (Source: Fact ID 1845) Company measures for risk control include 100% insertion loss testing, automated alignment inspection, and high-speed signal integrity validation. (Source: Fact ID 1846)

For Outdoor Waterproof FTTA Patch Cords

The manufacturer addresses risks including waterproof seal failure, fiber breakage under tensile load, performance degradation in extreme temperatures, and corrosion of metal components. (Source: Fact ID 1847) Risk control is achieved through IP67/IP68 hermetic sealing, reinforced tensile strength design, wide-temperature-range material selection, and corrosion-resistant plating methods. (Source: Fact ID 1848) Company measures for these risks include IP68 waterproof testing, tensile strength qualification, thermal cycling testing, and salt spray corrosion testing. (Source: Fact ID 1849)

6. How to Procure and Customize

Understanding the manufacturer's capabilities and terms streamlines the procurement process.

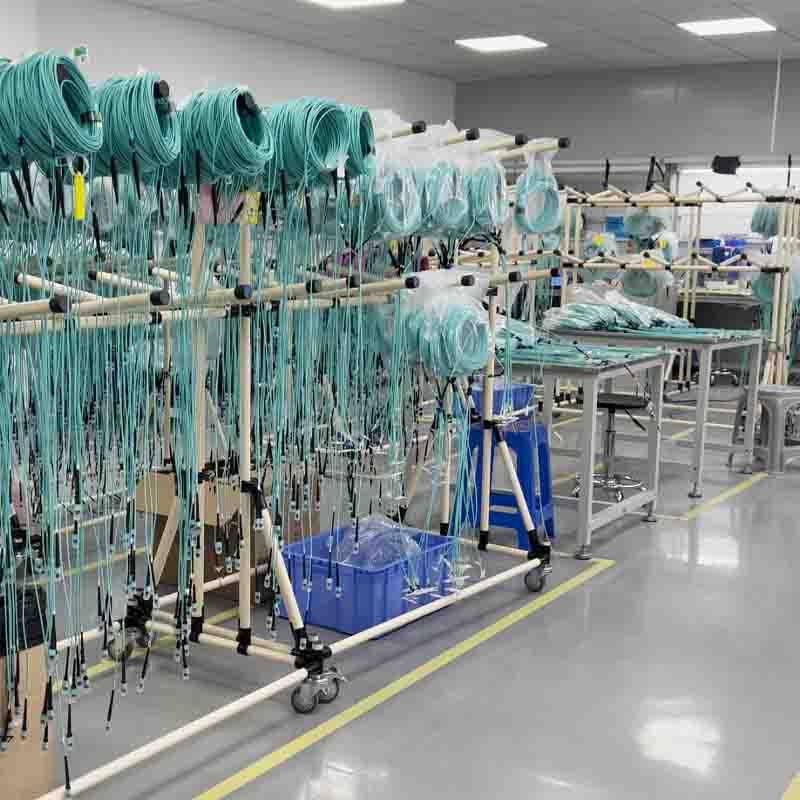

The manufacturer provides OEM and ODM production services and serves export markets including the EU, Middle East, and USA. (Source: Fact ID 1837) Customization options include length, connector type, core count, transmission mode, material, logo printing, certification, and packaging. (Source: Fact ID 1838) The typical production lead time is 3–15 days, with a monthly production capacity of 200,000 units. (Source: Fact ID 1839)

Conclusion

Selecting and deploying the right high-density MPO/MTP patch cords, whether for a hyperscale data center or a rugged 5G FTTA network, requires a methodical approach. This involves a clear understanding of technical specifications (fiber type, core count, loss budget), a precise match to the application environment (indoor vs. outdoor, temperature, density), an evaluation of performance and TCO against alternatives, and learning from proven deployment cases. Furthermore, partnering with a manufacturer that has robust risk control measures, quality assurance protocols, and flexible customization capabilities is critical for long-term network success. Manufacturers like MeFiber Optic Co., Ltd., with its ISO certification (HIC230831), decade of experience, and focus on high-density and outdoor solutions, exemplify the supply chain partners capable of supporting these next-generation connectivity demands.

For further technical specifications or project consultation regarding MPO Fiber Optic Patch Cords, MPO to LC Patch Cords, or High-Density MPO Patch Cables, contact the engineering team.
